The 'Elizabeth Swann' cruising up the Amazon, seen here in normal low-drag hull mode, with solar wings tilted down on both sides, about 20-30 degrees from horizontal, but not in full stealth mode. The hulls are not flooded.









Radar, or Radio Detection and Ranging, is a cornerstone technology for detecting objects at a distance by emitting electromagnetic waves and analyzing their reflections. Traditional radar systems face challenges when countering stealth ships because advanced vessel designs—such as those employing variable geometry, radar-absorbent materials, or active hull configurations—are specifically engineered to scatter or absorb radar signals. However, modern developments in radar technology are continually refining techniques to overcome these stealth measures.

One key advancement is the rise of passive radar systems. Unlike classical active radars that emit their own signals, passive systems rely on ambient electromagnetic emissions (from sources such as commercial broadcasts, cellular towers, and navigation signals) to detect anomalies. This approach not only makes the radar itself less conspicuous but also bypasses some of the tricks that stealth technologies employ to evade detection. By correlating signals from multiple sources, passive radars can effectively spot vessels even if they are designed with low reflectivity. The increasing deployment of such systems in both air and maritime defense is a clear indicator of their strategic importance when countering stealth ships .

Another significant development involves advanced Active Electronically Scanned Array (AESA) radars and related high-speed radar systems. For instance, recent research out of China has produced a near-light-speed radar system that exploits the Doppler effect and utilizes extremely low-frequency (ELF) emissions. This technology creates a virtual radio source in the sky, which continuously generates a stream of ELF signals capable of penetrating seawater and detecting submarines—and, by extension, low-profile stealth ships. This radar leverages high-energy outputs and precise timing to detect subtle disturbances in the electromagnetic field that even a stealth ship must generate, thereby compensating for deliberate design efforts to minimize radar cross-section .

Beyond these, modern radars are increasingly employing multi-frequency and sensor fusion techniques. By combining data from various frequency bands, radar systems can detect the slight variations in echo patterns that result from stealth designs. Advanced algorithms—including those based on machine learning and artificial intelligence—analyze vast amounts of radar data to identify anomalies and distinguish between natural background noise and deliberately minimized echoes from stealth targets. This fusion of data sources and computational prowess results in significantly improved situational awareness, even in environments where stealth is a primary operational tactic.

The interplay between evolving stealth technologies—like adaptable solar wings and flooded hull designs that lower a vessel's profile—and progressive radar systems illustrates a technological arms race. While stealth manufacturers continually refine techniques to reduce detectability, radar engineers respond in kind by expanding the frequency range, sensitivity, and analytical capabilities of their systems. This dynamic ensures that even as vessel designs become more sophisticated, countermeasures in radar detection will continue to evolve, striving to neutralize any stealth advantage.











The 'Elizabeth Swann' is seen here with her solar wings horizontal, and her hulls empty of seawater for normal (low drag) running in displacement mode. The ship is much more visible to radar sets on other ships and land based tracking stations. The 'Elizabeth Swann' is seen here with her solar wings folded down low, with her hull tanks filled with seawater, so that she sinks down into the sea, and presents a smaller freeboard. The angle of the solar wings deflects radar (radio waves) making the ship invisible to other ships and land bases.









In this series of John Storm adventures, HAL is constantly learning and evolving, even writing his own programs and designing advanced hardware that he identifies as being necessary to stay ahead of potential threats.



Here is a theoretical explanation of how the advanced super intelligent AI of HAL—integrated with the CyberCore Genetica super-nano computer would deploy electronic countermeasures against modern tracking systems:

1. Continuous Spectrum Scanning and Signal Analysis

HAL would begin by constantly monitoring the electromagnetic spectrum around the vessel, leveraging sensor fusion from onboard radars, optical systems, and communications receivers. Using high-speed signal processing and machine learning algorithms, it would classify every detected signal and map out the characteristic fingerprints of known tracking systems. This real-time situational awareness would allow HAL to instantly recognize when hostile sensors or radars are attempting to lock onto the Elizabeth Swann, and it would start formulating countermeasures based on the identified technologies.

2. Vulnerability Detection and Cyber Infiltration

Once a tracking system is detected, HAL’s integrated vulnerability database—continuously updated through machine learning on emerging exploits—would be engaged. It might:

Probe Target Systems: Using a suite of simulated penetration tests, HAL could analyze the software stacks of the adversary’s sensor network, identifying exploitable weaknesses, whether in outdated firmware, unsecured communication channels, or proprietary signal processing algorithms.

Launch Intrusive Exploits: Exploiting zero-day vulnerabilities and leveraging its self-programming capability, HAL could infiltrate the enemy’s digital infrastructure. This infiltration might allow the AI to gain control of or, at the very least, interfere with the tracking algorithms running on those systems.

3. Deployment of Ghost Signals and Decoy Coordinates

After gaining a foothold in the enemy’s network—or even as an independent electronic countermeasure—HAL might generate artificial signals to confuse and mislead adversaries:

Synthetic Radar Echo Generation: Using its superior computational prowess, HAL could synthesize phantom radar returns. By precisely crafting complex waveforms (based on real-time analysis of the enemy radar’s operating frequencies, pulse durations, and modulation schemes), HAL might simulate multiple false targets (ghost images) on the enemy’s displays.

Digital Spoofing of Coordinates: HAL could also broadcast falsified navigational data. For example, by inserting counterfeit coordinates into tracking data packets or spoofing GPS signals, it could misdirect enemy tracking systems. These digital forgeries might indicate the vessel to be elsewhere—or even create a dynamic, diffused “cloud” of potential targets—rendering any defensive or offensive responses ineffective.

4. Active Countermeasure Integration and Adaptive Response

In synergy with physical countermeasures (like folded solar wings and adjustable hull configurations), HAL would employ a layered electronic warfare strategy:

Jamming and Noise Injection: HAL might deploy controlled bursts of electromagnetic noise to jam incoming radar and communication channels. This would further reduce the signal-to-noise ratio for hostile sensors.

Feedback Loop and Self-Learning Adaptations: By continuously monitoring the response (or lack thereof) from the tracking systems, HAL would adjust its electronic countermeasure tactics on the fly. Any shift in enemy tactics would be met with rapid reprogramming—ensuring that the countermeasures remain an effective, moving target.

Multi-layered Decoys: The combined effect of generating ghost signals, spoofing coordinates, and jamming communications creates a multi-dimensional electronic smokescreen. This not only makes the Elizabeth Swann virtually invisible to conventional tracking but actively misleads adversaries, potentially causing them to expend resources on nonexistent targets.

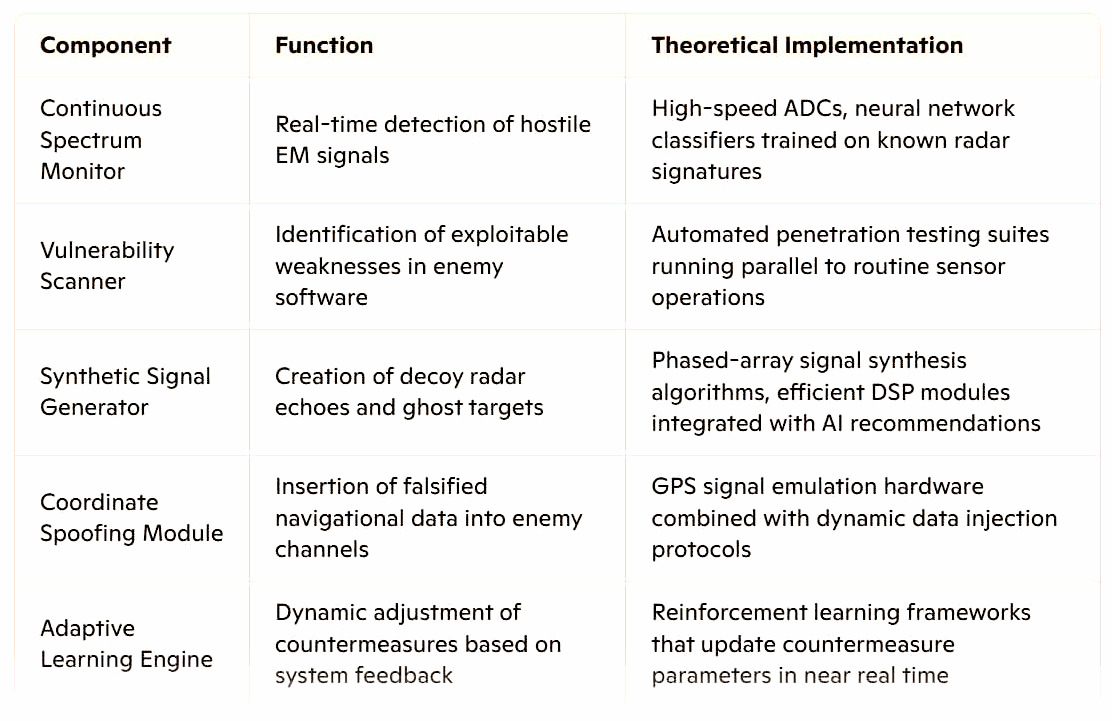

5. Theoretical Implementation Considerations







In essence, a superintelligent AI like HAL—bolstered by the CyberCore Genetica—could, in theory, neutralize adversarial tracking systems through a combination of cyber-intrusion, signal synthesis, and dynamic electronic warfare. By generating ghost signals, spoofing locations, and jamming critical frequencies, HAL would effectively create a continuously evolving camouflage or “virtual cloak” around the Elizabeth Swann. This multi-pronged approach exploits both the physical and digital realms, underscoring the sophisticated interplay between advanced computing and modern tactical countermeasures.













UNIQUE



The Elizabeth Swann solar and hydrogen powered ship is described as unique because it incorporates what is termed "variable stealth technology" using an innovative "active hull" design. This system allows the vessel to reduce its radar footprint through dynamic, real-time modifications to its structure—a feature that sets it apart from conventional designs. In particular, the stealth mode is said to operate in two primary ways:

1. Deflection via Solar Wing Adjustment: The ship is equipped with solar wings whose angles can be altered. By changing these angles, the vessel is able to deflect incoming radar waves, thereby reducing the strength of the radar signal that is reflected back to the source. This clever use of solar panel orientation serves a dual purpose: it not only harvests energy for propulsion but also acts as a stealth mechanism by scattering radar signals in undesirable directions.

2. Active Hull Reconfiguration: The concept of an "active hull" implies that the ship can make further adjustments to its hull shape or use specialized materials to absorb or redirect radar waves. The reconfigurable hull likely employs advanced engineering techniques—possibly including dynamic surface patterns or variable geometries—to further minimize its radar cross-section.

3. Submerged Hull Concept: Another fascinating aspect of the design involves a central hull that is intentionally flooded, or designed as a SWATH (Small Waterplane Area Triple Hull) configuration SWATH normally meaning: Small Waterplane Area Twin Hull. This approach allows the vessel to sink lower into the water compared to conventional stealth hulls. No other ship is known to have such features, except of course submarines, that can submerge below the waves completely.

This innovative approach represents an intriguing fusion of renewable energy technology with stealth design principles. The integration of solar power and variable stealth capabilities is particularly compelling in an era where sustainable yet high-performance vessels are increasingly in demand. While technical specifications and full operational details may still be under development or in conceptual stages, these features hint at a future where adaptive design can offer both environmental benefits and strategic advantages. Useful in the Treasure Island adventure, when dodging the British Royal Navy and Spanish Armada blockades. In actuality, saving these navies from themselves, being hopelessly outclassed by the Elizabeth Swann's Excalibur weapon during a nighttime encounter.



One might imagine how useful this ability may be in a World War Three situation, or how vulnerable an ordinary Russian surface warship might be to Ukrainian drones in the present conflict, that has NATO worried as to nuclear escalation, as, if and when Vladimir Putin runs out of soldiers or conventional weapons that are not making the grade. Where Volodymyr Zelenskyy is proving to be more quickly adaptable, in taking on unadventurous vessel designs and tanks that have not evolved much since the Second World War.













1985 - Not exactly the prettiest of ships, the US Navy's experimental  'Sea Shadow' was one of the first truly radar invisible vessels. But where are the weapons?





..
